Getting Started with SearchStax Studio

Welcome to SearchStax Studio.

SearchStax Studio is a game changer that makes it quicker, easier, and less expensive for companies to deliver relevant and personalized site-search experiences on their websites. The Studio gives control over the search experience to your business and marketing teams – and reduces IT bottlenecks.

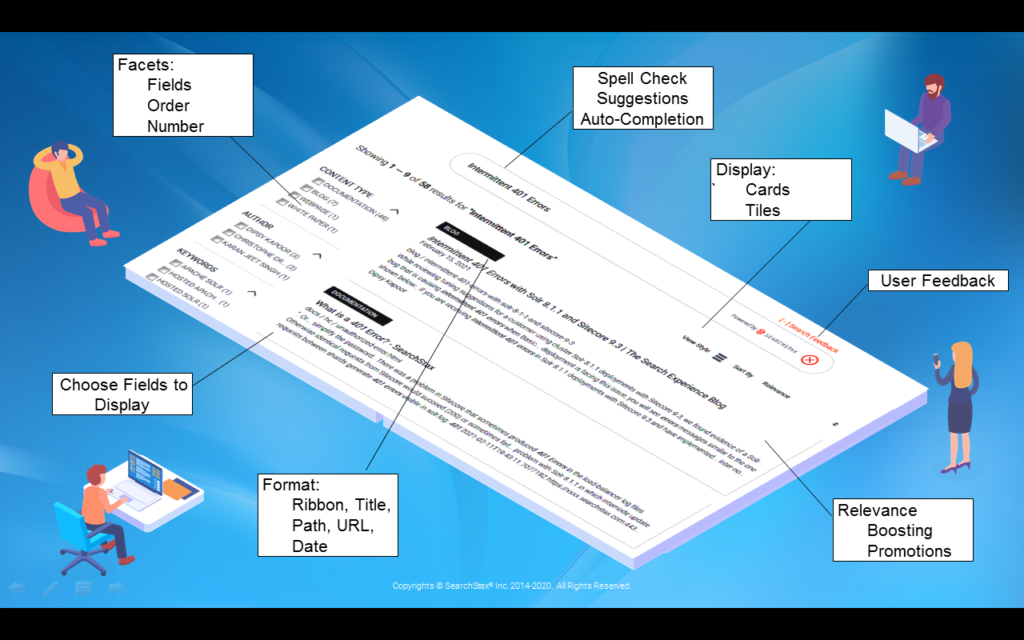

Once the Studio is integrated into your website, your business teams take over and use the point-and-click interface to:

  • Create Search Experiences in English, and optionally French and Spanish. For each Search Experience:
    • Configure the Studio with Results, Facets, Stopwords, Synonyms, Spell Check and Auto-suggest
    • Add your company Colors and Branding to the Studio query page.
    • Gain Insights with Search Analytics using the Dashboard, Searches, Items and Power Search
    • Optimize search results relevance with Ranking, Rules and Promotions
    • Personalize results by a different optimization models depending on the audience value
    • Gather feedback with the Search Feedback widget

Explore the SearchStax Studio Product Documentation using the navigation panel.

User Roles

This page explores the general concepts behind the SearchStax Studio. For instance, there are two user personas served by this document, reflecting their two very different levels of interaction with Solr and Studio.

  • Developer – This user is responsible for Setup, Data Modeling, Data Loading and Integration with the Client Application.
  • Business User – This user views Analytics data, configures Search Features, creates Search Relevancy models, and tests the results.

Project Overview

The goal of the SearchStax Studio is to empower a Business User to shape and control the web-search experience. The Business User interacts exclusively with the Studio user interface, making point-and-click modifications in the presentation of search results.

Before reaching that point, however, the Developer must create a Solr deployment that can respond to user queries.

The initial steps involve the Developer. There must be a Solr search engine in the background, with a customized search page that sends user events and feedback to a Search App. The details of these tasks are shared in the Task List page.

Once the infrastructure is in place, and the Search App has accumulated several weeks of data, control transitions to the Business User. The project usually pursues the following milestones:

  1. Examine the recorded data in the Studio (keywords, results, and click-through events). Identify opportunities to improve the search experience.
  2. Use SearchStax Studio to adjust:
  3. Use the Studio to create Relevance Models.
  4. Evaluate each Relevance Model by comparing search results.
  5. Possibly promote a Relevance Model to be the default system behavior.

Search Application

The first step in training your search engine is to take a detailed look at its current behavior. For this the Developer creates a Search Application (Search App) and connects it to a Search Page that reports user actions and feedback.

The Search App lets you record the history of searches, clicks, revenue, searches per session and user feedback over a period of time appropriate to your business. At a lower level, the App summarizes popular queries and critical metrics such as click-through rate, average click position, mean reciprocal rank, and frequency of no-results searches. See Analytics – Searches.

The Search App shows you how actual client searches translate into click-through events. It becomes a repository of queries and click events to drive experiments while you tune the search behavior. See Search Experience – Search Configuration.

In terms of user feedback, the App records feedback events, user ratings, email addresses, and user text comments

Search Experience Manager

Once you know what your search engine is doing, you’ll want it to do something differently. The Studio gives a Business User direct control over the following parts of the search experience.


The SearchStax Studio defaults to an English-language experience, but can also provide Language-Specific Search Experiences.

Results and Display

Index records have multiple fields, not all of which make sense to the public. The Studio lets you choose which fields to show in the search results. You can order the fields to put the important ones at the top. It’s a point-and-click operation.

You can also control the number of results to present and optionally turn on hit-highlighting, a feature that emphasizes words that match the user’s query. See Results and Display Tab


The Studio lets you pull up a specific search result and view the query keywords that led to click-through events. Sometimes quite different keywords can all lead to the same outcome. For example, people who purchase a “tank top” might have searched initially for “shirt,” “blouse,” “top,” or “singlet.”

The Studio lets you define some of the keywords to be synonyms. When a user enters a keyword, the search engine automatically includes synonyms in the search. This widens the search to include all records that use any of the terms.

Synonyms are defined in pairs, and can be one-way (A implies B) or reflexive (A and B imply one another). See Synonyms Tab


Some fields contain clear, discrete values that make natural selection lists, such as a field that contains the names of the three primary colors. These lists are called “facets,” and are used to filter the search results.

The best facets are those that have just a few values (5 to 7, typically), so the user can see them all at once.

The Studio lets the Business User pick fields to use as facets, determine how many choices will be offered in each list, and define the order of the facet lists on the search page. See Faceting Tab


It is a waste of memory and CPU time to search for words like “and” and “the” because they appear in virtually every record in the index. Most search engines filter out these “stopwords” before the search.

The Studio makes the stopwords visible to the business user and permits adding and removing words from the list. See Stopwords Tab

Spell Check

When users misspell or mistype a query keyword, they can miss out on your services and products. Spell checking compares the user’s input with a dedicated dictionary that you provide or with terms in the index of a specific collection. Either way, when a close match is encountered, Solr searches for both the original and the corrected terms. See Spell Check Tab.

Auto Suggest

To help users enter their search keywords, the SearchStax Studio can maintain a collection (a Solr index) of terms that have been entered before. The Auto-Suggest feature returns a list of keywords that match the lettter-by-letter input while the user types in the search field. The user can click on one of these words to complete the search. See Auto-Suggest Tab.

The Studio’s Related Searches feature lets us define a search phrase (such as “Sitecore”) as being related to one or more other potential search phrases. Related searches are offered to the search user at the bottom of the list of result-items (default position). If the user clicks one of the phrases, it becomes the basis of the next search.

The Studio also augments the list of Related Searches from accumulated user data using Artificial Intelligence (AI). For the AI-augmented related searches, a Search App should be connected with your search page and there should be enough searches with clicks available. See the Related Searches screen.

Search Relevance Models

The Studio lets us create named sets of search configurations known as “relevance models.”

A relevance model lets us adjust which content fields will be included in the match score, and how much a match in each field will contribute to the final total.

Search Fields

The Studio lets the Business User select which fields to use when searching. (This is not the same as selecting the fields to display in the search results.) By narrowing the target fields, the user can speed up the search and make it more focused on critical content.

See Search Fields Tab


The Studio lets you set the relative importance of the search fields, so that a keyword match in one field counts more heavily than the same match in a less-important field. A match to an author’s name might get more weight than one to a document title, which in turn might have more weight than a match in a document description.

The Studio lets you set the importance of your fields using slider controls. There is no programming involved. See Ranking Tab


Rules are if-then propositions that let us respond to search keywords by boosting specific match fields or filtering the search results to items that include a specific field-value. For instance, if the incoming query includes the word “security,” then multiply the content field score by 10. See Rules Tab.


When the user searches for a specific keyword, sometimes the Business User wants to push one of the search results to the top of the list of matches. This is a “promotion.”

The SearchStax Studio lets us promote one or more items to the top of the list, whether it would normally match the triggering keyword or not. See Promotions Tab.

Testing Alternative Models

The Studio lets us experiment by running searches against multiple relevance models. We can compare the original results and the new ones, summarized as changes in:

  • Average Click Position: This is the mean click-through position in the search results.
  • MRR: Mean reciprocal rank, a weighted mean of click-through position. Ranges from 0 to 1.
  • No Result Search %: Percent of queries that returned zero results.

If the new results improve on the old ones, we can adopt those changes and start again.
